DRILL TIE^® Products

DRILL TIE^® Sizing and Specifications

The DRILL TIE^® is specified by 2 dimensions:

• concrete thickness
• form thickness – measure of plywood form and securing braces

Standard Sizes

example – 7 5/8 x 2 1/8 is utilized to form when working with an 8 inch block wall and using 5/8” plywood and 2x4 flat waler

example – 7 5/8 x 2 1/4 is utilized to form when working with an 8 inch block wall and using 3/4” plywood and 2x4 flat waler

Special Sizes

example – 11 5/8 x 2 1/8 is utilized to form when working with an 12 inch block wall and using 5/8” plywood and 2x4 flat waler

example – 12” x 2 1/4 is utilized to form a true 12” formed column or beam with 3/4” plywood and 2x4 flat waler

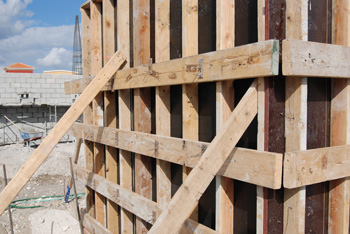

Long Tail Sizes

example – 7 5/8 x 5 ¾ is utilized to form when working with a 8 block wall and using 3/4” plywood and a stong back application (2x4’s on edge with flat 2x4 waler)

Standard Sizes
Orange	7 5/8 x 2 1/8
Green	7 5/8 x 2 ¼
Specials
Blue	8 x 2 ¼
Pink	10 x 2 ¼
Gold	11 5/8 x 2 1/8
Grey	11 5/8 x 2 1/4
Red	12 x 2 ¼
Lite Blue	14 x 2 ¼
Brown	15 5/8 x 2 1/8
Purple	15 5/8 x 2 ¼
Yellow	16 x 2 ¼
Black	18 x 2 ¼
Rose	20 x 2 ¼
White	24 x 2 ¼
Long Tail Series
(5 ¾” tail)
7 5/8, 8, 11 5/8, 12, 15, 16

DRILL TIE^® Clips

Standard Drill Tie^® Clips fit all Drill Tie^® sizes. The re-usable Drill Tie^® Clips are sold in boxes of 100.

Each Drill Tie^® when installed as a system as recommended, utilizing standard concrete forming techniques, has a holding capacity of 3000 lbs per tie.
